MONOWALL

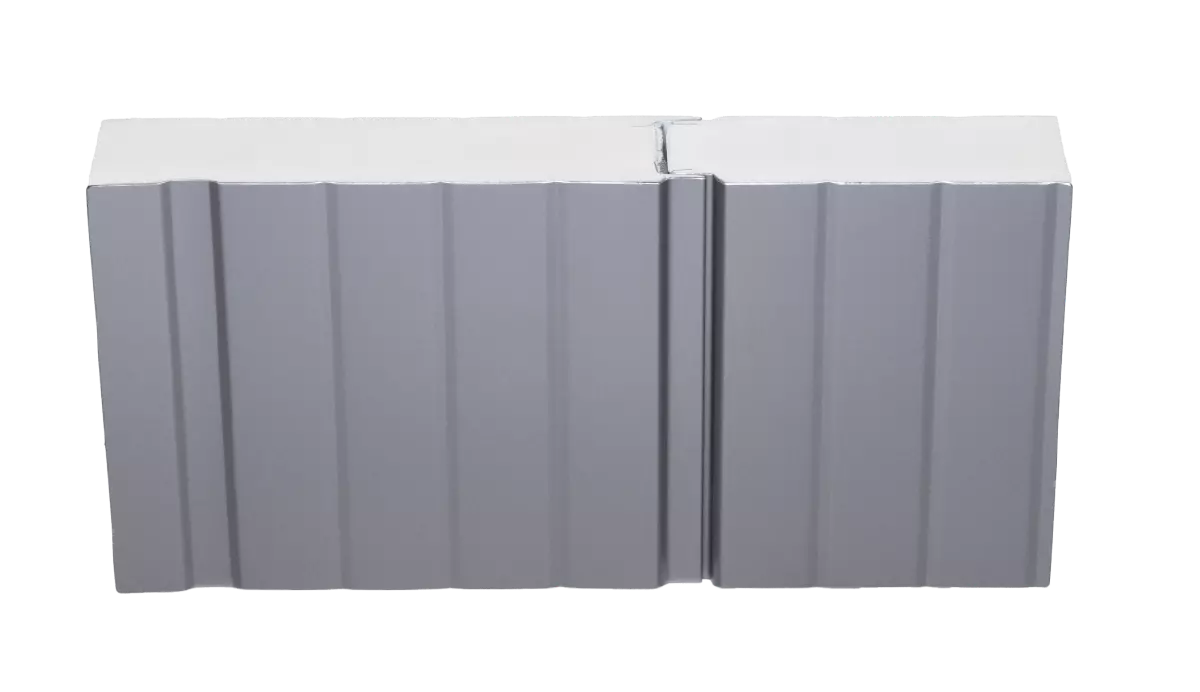

The Monowall® panel with polyurethane insulation core is suitable for both vertical and horizontal installation. Its special surface profile facilitates the installation of the panel without the risk of bulging. The appearance of the external side benefits distinctly from the screw head applied in the recess of the profile.
A non-displaceable longitudinal sealing strip produces a joint resistant to driving rain and wind. The organic coating of the steel sheet ensures efficient protection against all kinds of weather.
Additional coating systems are available for advanced application.
For further information, please have a look at our detailed technical manual.
read more >>| Element name | Element thickness | Outer shell | Inner cover shell | weight | Thermal resistance | Heat transfer coefficient (Ψ - Joint factor) | |
|---|---|---|---|---|---|---|---|
| s | tN | tN | kg / m² | R | U without Ψ | U with Ψ | |
| mm | mm | mm | kg / m² | m² K / W | W / m² K | W / m² K | |
| MONOWALL | 40 | 0,60 | 0,45 | 10,7 | 1,62 | 0,606 | 0,643 |
| 50 | 0,60 | 0,45 | 11,1 | 2,04 | 0,504 | 0,531 | |
| 60 | 0,60 | 0,45 | 11,5 | 2,46 | 0,402 | 0,415 | |
| 80 | 0,60 | 0,45 | 12,3 | 3,29 | 0,301 | 0,308 | |
| 100 | 0,60 | 0,45 | 13,1 | 4,12 | 0,241 | 0,245 | |
| 120 | 0,60 | 0,45 | 13,9 | 4,96 | 0,201 | 0,204 | |
Reaction to Fire
Thermal Conductivity
λ=0,024 W/m.K according to DIN 4108 and DIN EN 13165
The insulation values are regularly monitored by external bodies and may be applied without any further reduction.
Sound Insulation
Rw ≥ 25 dB
Corrosion Protection
- Standard version with external sheet 25 μm polyester and internal sheet ≈15 μm thin coating (DU)
- External sheet: category RC3; internal sheet: category RC2 (under the terms of DIN EN 10169)
External sheet: corrosivity category C3 corresponding to average duration of protection for urban and industrial environments with moderate exposure to sulphur dioxide.
Internal sheet: corrosivity category C2 for dry indoor rooms and buildings with occasional minor condensation. Other coating systems are available for more sophisticated demands such as buildings near the sea, farm buildings with high ammonia exposure or moist rooms.
Standard lengths
> 2,00 m up to 25,00 m, greater lengths on request.

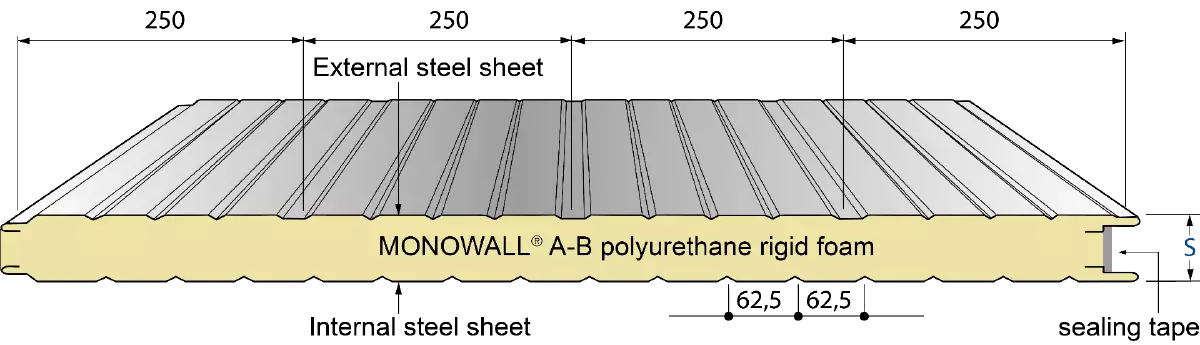

Types of profiles
External/internal sheet
STANDARD COATING FOR EXTERNAL APPLICATION
25μm POLYESTER
Corrosivity category RC3 in accordance with DIN EN 10169:2010-2
UV resistance category RUV2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The well-proven polyester-coating is a modern and costeffective coating system, adapting well to different colour finishes. Polyester-coatings show good corrosion- and weather resistance under normal conditions for industrial application within the Central European region, which makes it the most frequently used coating system.
STANDARD COATING FOR INTERNAL APPLICATION
15 μm DU-POLYESTER
Corrosivity category RC2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The polyester-thin-coating (standard colour shade similar to MC 9002) is suitable for conventional industrial buildings for indoor application in rooms with normal room climate and normal relative humidity. The colour shade may not be uniform due to the coating thickness.
25 μm OR 35 μm PVDF (POLYVINYLIDENFLUORIDE) - On request
Corrosivity category RC3 (25 μm) or RC4 (35 μm) in accordance with DIN EN 10169:2010-2
UV resistance category RUV4 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 110°C
This coating shows optimal resistance against UV-radiation and weather and has good ductility. lt is suited particularly well for high requirements on the colour finish and has been found to be excellent in regions with difficult climatic conditions (e.g., 5-15 km from the sea).
Our recommendation for outdoors (indoors)
50 μm POLYAMIDE MODIFIED POLYURETHANE (PUR-PA) - On request
Corrosivity category RC5 in accordance with DIN EN
10169:2010-2
UV resistance category RUV4 in accordance with DIN EN
10169:2010-2
Temperature exposure -20° to 80°C
By using polyamide this coating system reaches a high surface hardness. lts visibly grained structure is particularly resistant to abrasion and ensures efficient protection against mechanical damage. lt is also widely resistant to strain by animals such as poultry, making it ideally apt for agricultural application. The flexibility and excellent resistance to UV radiation make this coating also suitable for outdoor installation.
Please also have a look at our Guideline for the Selection of Coating Systems.
Thickness of steel sheets
External sheet 0,60 mm (optional: 0,50 mm / 0,75 mm)
Internal sheet 0,45 mm (optional: 0,40 mm / 0,50 mm / 0,60mm)
Materials
Optional version
- According applicable EU Construction Products Regulation, production according to DIN EN 14509, CE label under the terms of the EG conformity certificate 0769-CPR-VAS-00420-1
- DIBt Approval for Use Z-10.49-516 as self-supporting sandwich panel under the terms of DIN EN14509 and DIBt Approval Z-10.4-583 as supporting sandwich panel
Warning:
PIR rigid foam panels are generally produced as self-supporting panels under the terms of Z-10.49-516 (DiBT) according to DIN EN 14509 and are labelled CE.
If PIR rigid foam panels are requested as supporting panels (under the terms of Z-10.4-583), this must be mentioned before order placement. In this case, the panels will be delivered with the correct Ü labels.
External sheets provided with removable protective foil, panel-packages wrapped with banded plastic foil to protect from soiling. Also, package weights of max. 2,5 t or 1,5 t are available on request.
Container shipment
On request, we provide container packaging apt for oversea shipping. The panels will be stored in containers of 20 feet (6,096 m) or 40 feet (12,192 m), including an unloading system for easy unloading of the packages at their destination.
Number of panels per package
Core thickness Number *
Way of Packaging
