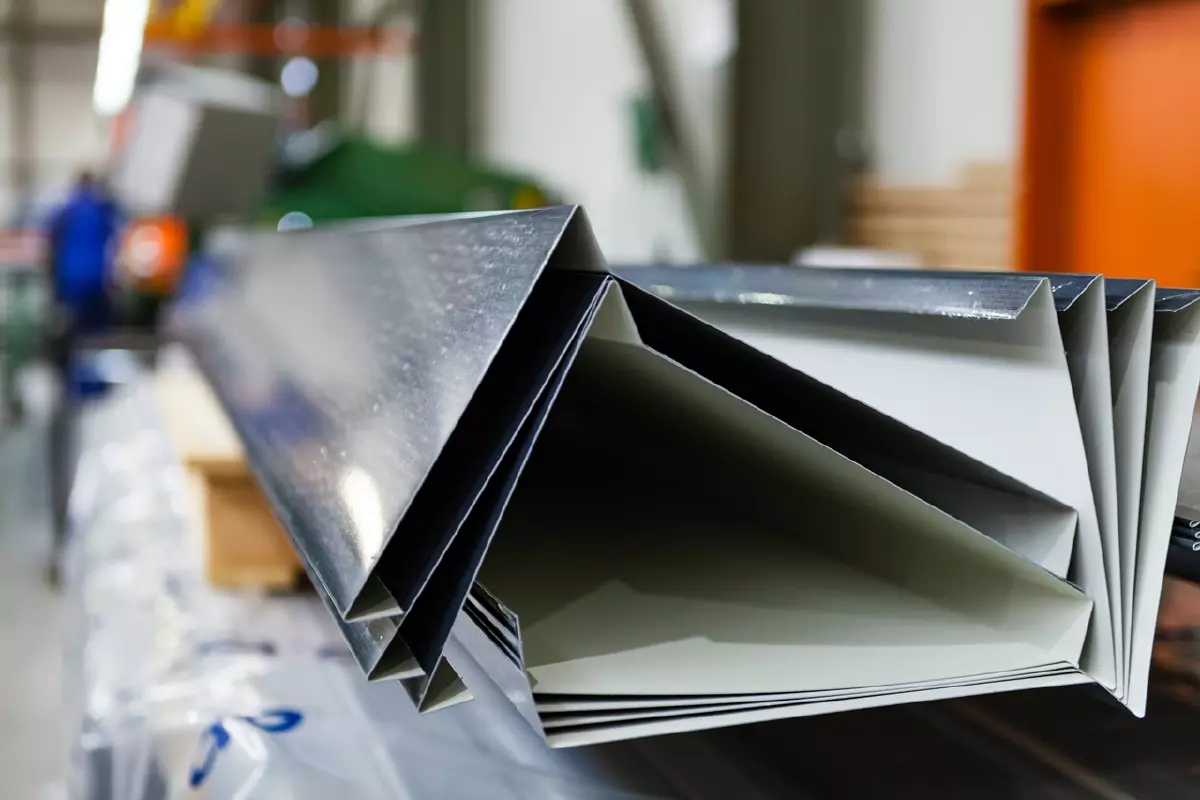

FLASHINGS
Made of galvanized, coated steel.
Material thickness 0,75 mm; maximum lengths up to 6.000 mm.
Side A: 25 μm polyester coating with protective foil
Side B: RSL protective coating
Available in colours matching the cover sheets of the panels.

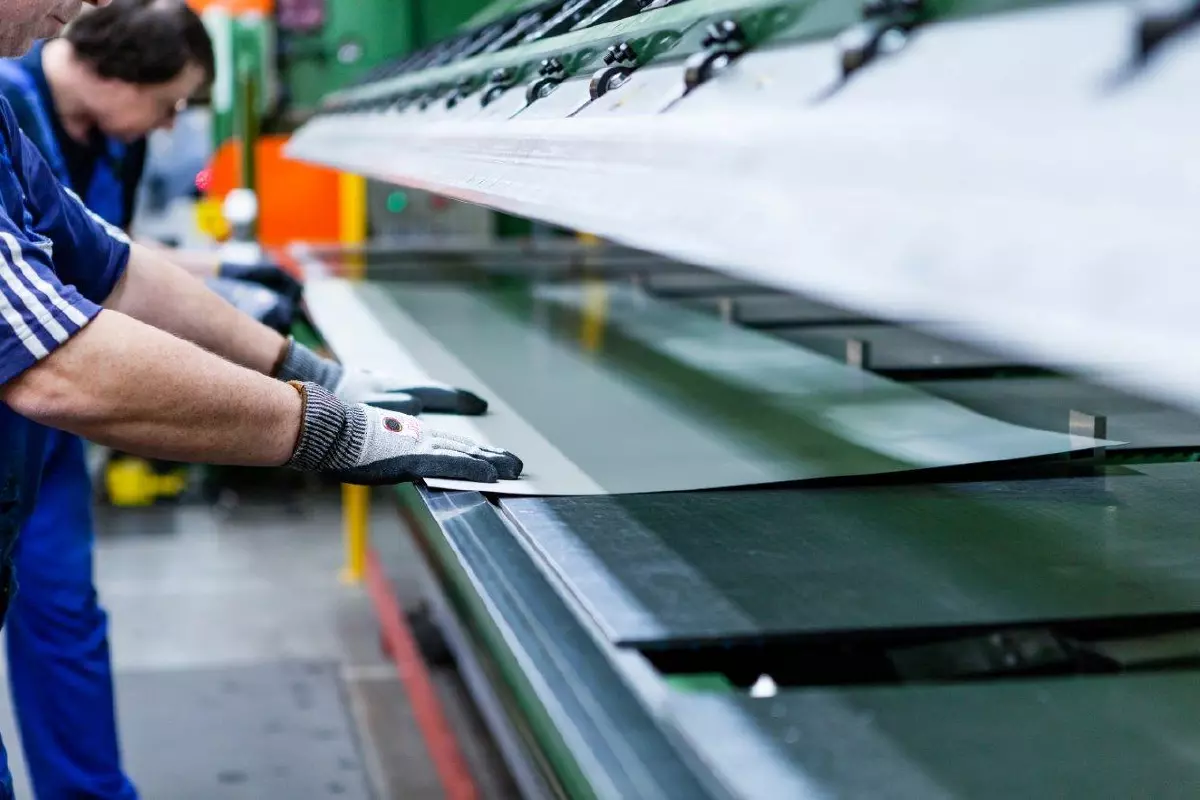

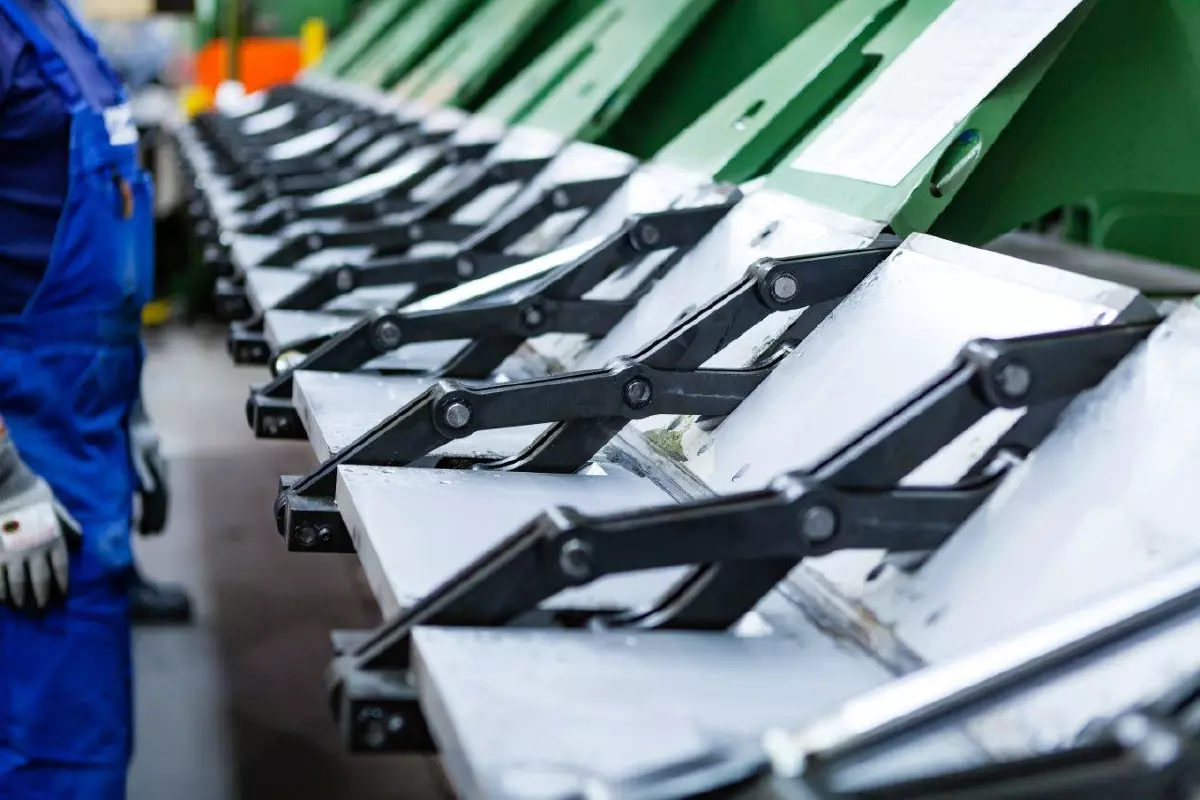

Production possible on the basis of profile drawings sent by customer or with item number according to our flashings-catalogue.
Special designs on request.
DESIGN DETAILS
Our planning folder contains detailed proposals and application solutions in PDF-and DWG-format. It also contains text templates for the quick preparation of tenders with our sandwich elements and flashings.
weiterlesen >>
STANDARD COATING FOR EXTERNAL APPLICATION
25μm POLYESTER
Corrosivity category RC3 in accordance with DIN EN 10169:2010-2
UV resistance category RUV2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The well-proven polyester-coating is a modern and costeffective coating system, adapting well to different colour finishes. Polyester-coatings show good corrosion- and weather resistance under normal conditions for industrial application within the Central European region, which makes it the most frequently used coating system.
STANDARD COATING FOR INTERNAL APPLICATION
15 μm DU-POLYESTER
Corrosivity category RC2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The polyester-thin-coating (standard colour shade similar to MC 9002) is suitable for conventional industrial buildings for indoor application in rooms with normal room climate and normal relative humidity. The colour shade may not be uniform due to the coating thickness.
25 μm OR 35 μm PVDF (POLYVINYLIDENFLUORIDE) - On request
Corrosivity category RC3 (25 μm) or RC4 (35 μm) in accordance with DIN EN 10169:2010-2
UV resistance category RUV4 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 110°C
This coating shows optimal resistance against UV-radiation and weather and has good ductility. lt is suited particularly well for high requirements on the colour finish and has been found to be excellent in regions with difficult climatic conditions (e.g., 5-15 km from the sea).
Our recommendation for outdoors (indoors)
50 μm POLYAMIDE MODIFIED POLYURETHANE (PUR-PA) - On request
Corrosivity category RC5 in accordance with DIN EN
10169:2010-2
UV resistance category RUV4 in accordance with DIN EN
10169:2010-2
Temperature exposure -20° to 80°C
By using polyamide this coating system reaches a high surface hardness. lts visibly grained structure is particularly resistant to abrasion and ensures efficient protection against mechanical damage. lt is also widely resistant to strain by animals such as poultry, making it ideally apt for agricultural application. The flexibility and excellent resistance to UV radiation make this coating also suitable for outdoor installation.
Please also have a look at our Guideline for the Selection of Coating Systems.
